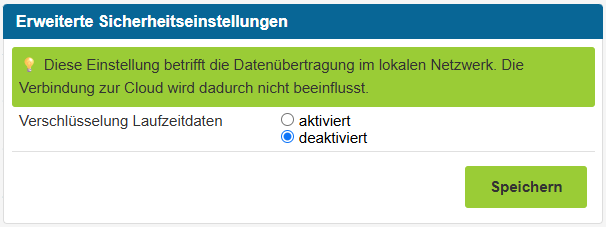

Das deaktivieren der Laufzeitdaten Verschlüsselung am ELWA2 und einem Neustart der cFos hat die Verbindung wieder hergestellt. Und die Daten werden jetzt im cFos Dashboard angezeigt.
Kann mir jemand sagen, wie ich die TLS Verbindung von der cFos mit Passwort aus einrichten kann?
Meine Konfigurationsdatei sieht aktuell so aus:
{
"rtype": 1, // 0 = modbus, 1 = http/json
"mtype": 0, // 0 = other, 1 = meter, 2 = inverter, 4 = battery
"name": "my-PV AC ELWA 2+HTTP", // as displayed in the config dialog
"manufacturer": "my-PV",
"dev_type": "my-pv_ac_elwa_2+http", // will be prefixed by "meter_"
// values used to build the model string
"type_designation": {
"fixed": "AC ELWA 2+HTTP"
},
// instantaneous values
"power_w": {
"address": "GET /data.jsn",
"query": "power_elwa2",
"type": "int16",
"resolution": 1.0
},
"*temp1": {
"address": "GET /data.jsn",
"query": "temp1",
"type": "int16",
"resolution": 0.1
},
"*temp2": {
"address": "GET /data.jsn",
"query": "temp2",
"type": "int16",
"resolution": 0.1
},
"outputs": [ //see: https://www.cfos-emobility.de/de/cfos-charging-manager/documentation/battery-rules.htm
{
// "address": "#2#${if exists(charge_power_w) `POST /control.html?power=${charge_power_w}}"
// "address": "#2#${if exists(charge_power_w) `192.168.178.16/control.html?power=${charge_power_w}}"
"address": "#2#192.168.178.16/control.html?power=${charge_power_w}"
// "address": "#2#POST /control.html?power=${charge_power_w}"
}
]
}
